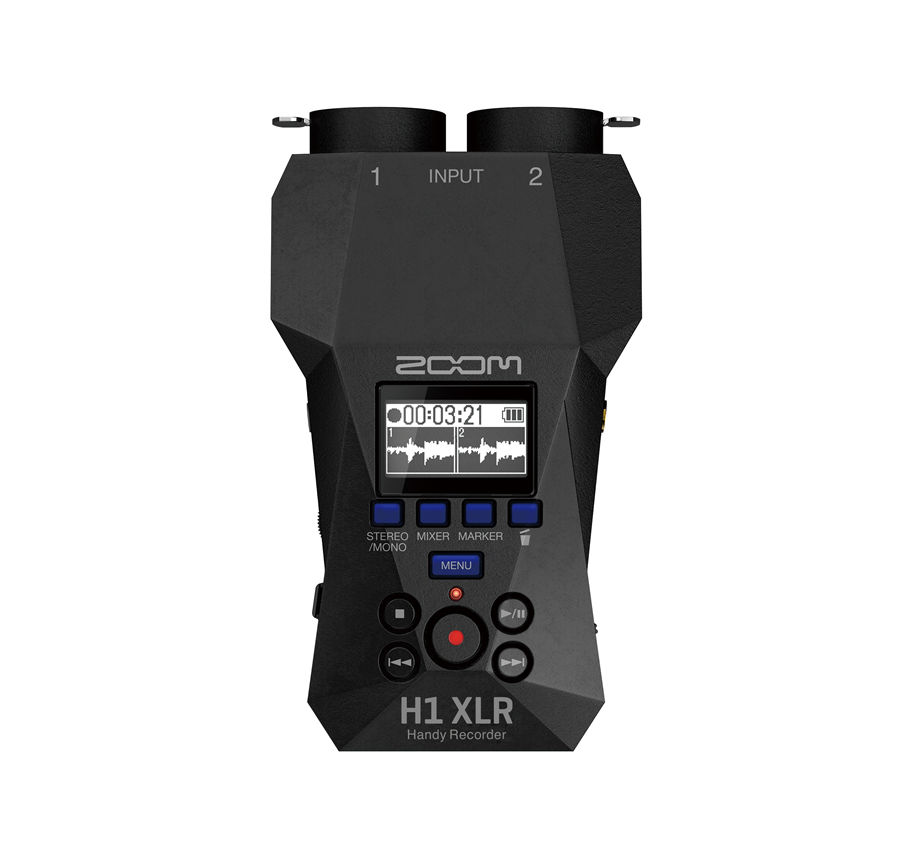

Zoom H1 XLR Handy Recorder

Zoom H1 XLR Handy Recorder

Portable Recorder

ID: ZM105546

Zoom
Zoom H1 XLR Handy Recorder
155 €

In stock

Estimated delivery: Wednesday, 19 August

Accumulate discounts for your card

Best price on the market

Free Shipping
*Continental Portugal only
lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

Zoom H1 XLR Handy Recorder
Zoom H1 XLR Handy Recorder
155 €
PowerAcoustics CAB2136 JackM/XlrM 9mt Audio cable
PowerAcoustics CAB2136 JackM/XlrM 9mt Audio cable
15,10 €

Go Anywhere, Record Anything

The H1 XLR is the recorder for creators who know no limits. Capture audio for video, direct feeds from mixers, song ideas and more.

Features
check_circle_outline
2-track 32-bit float recorder with Dual A/D converters
check_circle_outline
Clip-free recording with no need to set gain
check_circle_outline
Records up to 96kHZ sample rate
check_circle_outline
Voice Guidance accessibility for the visually impaired
check_circle_outline
2 XLR/TRS combo inputs with locking connector
check_circle_outline
Hardware MIC/LINE input level select switch for each input
check_circle_outline
Stereo ⅛" Mic/Line In mini phone jack
check_circle_outline
Stereo ⅛" Phone/Line Output jack with dedicated volume control
check_circle_outline
¼ | 20 Tripod mount
check_circle_outline
Real time waveform display on OLED display
check_circle_outline
Built-in mixer to adjust each track’s audio input level
check_circle_outline
Built-in speaker for quick reference playback and voice guidance accessibility
check_circle_outline
32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
check_circle_outline
Use as an interface and record to SD card simultaneously
check_circle_outline
Records directly to microSDHC and microSDXC cards up to 1 TB
check_circle_outline
10 hours of battery life on AA battery (2x) or USB-C Bus Power
Specifications
Zoom H1 XLR Handy Recorder
MIC/LINE Inputs (mono)
Tipo de conetores disponíveis no equipamento, e/ou para qual tipo de ligação servem.
Connector(s)
2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
É geralmente definida como a relação média entre a amplitude ou potência do sinal na porta de saída e a amplitude ou potência na porta de entrada. É frequentemente expresso utilizando as unidades logarítmicas decibel (dB) ("dB de ganho").
Input Gain
Adjustment unnecessary (dual A/D converter circuits used)
Saber a impedância da entrada do pedal informa-nos se é possível ligar também sinais de linha ou apenas de instrumento.
Input Impedance
MIC: 2.7 kΩ or more / LINE: 1 kΩ or more
Maximum Input Level
MIC: +4 dBu / LINE: +24 dBu
Phantom Power
+48 V / Channel total 10 mA or less
Equivalent Input Noise
MIC: –122 dBu or less (IHF-A) at 150Ω input / LINE: –100 dBu or less (IHF-A) at 600Ω input
MIC/LINE IN Jack
Connector
Stereo mini jack
Saber a impedância da entrada do pedal informa-nos se é possível ligar também sinais de linha ou apenas de instrumento.
Input Impedance
2 kΩ
Plug-in Power
2.5 V
PHONE / LINE OUT Jack
Connector
Stereo mini jack
Nível máximo de saída do sinal (medido em dB).
Maximum Output Level
20 mW + 20 mW (when 32 Ω load)
A impedância de saída indica-nos se o sinal que sai do pedal é sinal de instrumento ou de linha.
Output Impedance
10 Ω or less
Built-in Speaker
Type
20 mm × 30 mm elliptical dynamic speaker
Effective Maximum Output
250mW
Recorder
Recording Format
WAV
Sampling & Bits
44.1, 48 or 96 kHz / 32-bit float
Indica o número, ou tipo/especificação, de canais do equipamento.
Channels
Stereo / Mono
Formats Supported
BWF and iXML
Cartões de memória suportados pelo equipamento.
Recording Media
4 – 32GB cards compatible with the microSDHC specification / 64GB – 1TB cards compatible with the microSDXC specification
Audio Interface
Audio Class
USB Audio Class 1.0
Input / Output Channels
2 in / 2 out (Stereo)
Sampling Frequencies
44.1, 48 kHz
Bit Depth é o número de bits disponíveis para cada amostra. Quanto maior for a profundidade de bits, maior será a qualidade do áudio.
Bit Depth
16-bit, 32-bit float
File Transfer
USB 2.0 High Speed
Other
Type of power supply needed for the equipment to operate.
Power Supply
2 AA batteries: Alkaline, Lithium, or Rechargeable NiMH / AC adapter ZOOM AD-17: DC 5 V/1 A • USB bus power is supported.
Indica o consumo elétrico do teclado, pedal ou outro dispositivo.
Power Consumption
2.5 W maximum
Estimated continuous operation time (Phantom Power OFF)
Alkaline Batteries
About 12 hours
NiMH Batteries (1900 mAh)
About 11 hours
Lithium Batteries
About 19 hours
Estimated continuous operation time (Phantom Power ON)
Alkaline Batteries
About 4 hours
NiMH Batteries (1900 mAh)
About 3 hours
Lithium Batteries
About 9 hours
Dimensions & Weight
Displays the dimensions of the unit in width, depth and height.
Dimensions (W x D x H)
62.1 mm × 107 mm × 39.3 mm
Item weight. Usually given in Kg (or Pounds). Sometimes also other types of indications, such as for drum cymbals, for example.
Weight
164 g (Including batteries)
