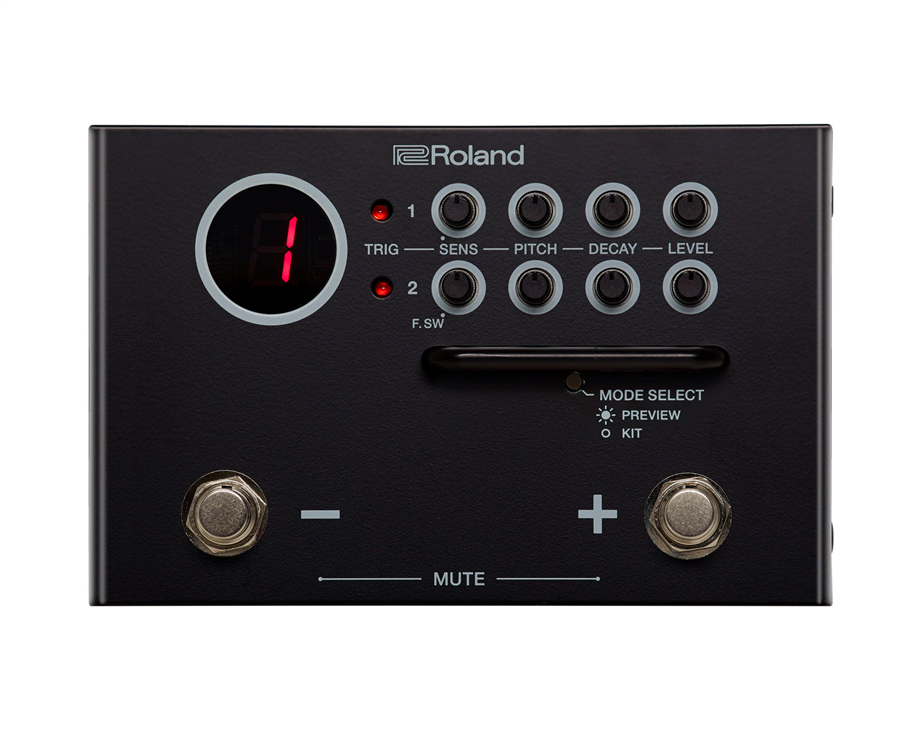

Roland TM1 Trigger Module

Roland TM1 Trigger Module

E-Drum Sound Module

ID: ZMRDBPBD270007

Roland
Roland TM1 Trigger Module
164 €

Out of stock

Accumulate discounts for your card

lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

Roland TM1 Trigger Module
Roland TM1 Trigger Module
164 €
Roland RCC-10-352R 3mt MJackSt/2xRcaM Audio Cable
Roland RCC-10-352R 3mt MJackSt/2xRcaM Audio Cable
19,58 €
No two drummers are the same, and every player has their own distinctive style. Getting a sound that you’re happy with, not to mention having the right sound for the gig, is vital. But it can be expensive and time consuming trying to find out what works. Enter the TM-1—a unique trigger module that makes it easy to add more sounds to your acoustic drum kit. And those sounds can be anything you like, from the TM-1’s onboard kick, snare, tom, cymbal, and percussion samples to your own samples and loops. Just connect any compatible Roland trigger pad to the TM-1 and directly play the sounds you need, or mount an RT-series trigger to one of your acoustic drums and play with your preferred sample layered on top in perfect sync, with no lag whatsoever.
Features
check_circle_outline
The easiest way to get started with the power of hybrid drums
check_circle_outline
Simple and intuitive to use, with direct controls for all trigger functions
check_circle_outline
Small size, battery operation, and sturdy floor-based design integrates easily with your regular drum set
check_circle_outline
Two built-in footswitches for triggering sounds, changing kits, and muting the module
check_circle_outline
Suitable for any music style, from rock and metal to electronic music and beyond
check_circle_outline
15 ready-to-play onboard kits and nearly unlimited sound customization via a convenient editor app
check_circle_outline
Free TM-1 Editor (Mac/Windows, iOS/Android) provides access to over 150 additional sounds, plus user sample import and much more
check_circle_outline
Compatible with Roland RT-series acoustic drum triggers and a wide variety of Roland trigger pads
check_circle_outline
Connect up to two pads or triggers (two single-trigger devices or one dual-trigger device)
check_circle_outline
Also works as a trigger-to-MIDI convertor when connected to a computer
check_circle_outline
USB for editor communication and trigger-to-MIDI conversion
Specifications
Roland TM1 Trigger Module
Specifications
Indica a quantidade de presets/kits de bateria/percussão que existem no módulo.
Kits
15
Indica os sons originais de fábrica incluídos no módulo.
Preloaded Sounds
30
Refere-se aos samples possíveis de carregar dentro do módulo, e o tempo limite para cada sample importada.
User Sample
Number of User Sample: 30; Sound Length: Approx. 6 second/Sample
Refere-se ao(s) formato(s) de ficheiro(s) suportado(s) pelo módulo/sampler.
Data Format
Mac OSX:; WAV, AIFF, MP3, AAC, Apple Lossless; ; Windows:; WAV (44.1 kHz, 16/24 bits); ; iOS:; WAV, AIFF, MP3, AAC, Apple Lossless; ; Android:; WAV (44.1 kHz, 16 bits), MP3; ; *The Application ‘TM-1 Editor’ is required.
Indica se o dispositivo tem visor. Pode especificar qual o tipo (LCD, LED) ou a forma de apresentação dos caracteres.
Display
7 segments, 1 character (LED)
Indica quais os tipos de potenciómetros (controlos) disponíveis na guitarra, amplificador, teclado, etc,, como por exemplo, volume, tom, 'push and pull' ou outros.
Controls
[SENS] knob (TRIG1, TRIG2); [PITCH] knob (TRIG1, TRIG2); [DECAY] knob (TRIG1, TRIG2); [LEVEL] knob (TRIG1, TRIG2); [MODE SELECT] button; [MUTE] switch; [KIT SHIFT] switch; [POWER] switch
Indicador de informação. Por norma sinalizado em LED. (Ex: Power on/off; Outros)
Indicator
Trigger Indicator (TRIG1, TRIG2)
Tipo de conetores disponíveis no equipamento, e/ou para qual tipo de ligação servem.
Connector(s)
TRIGGER IN jack : 1/4-inch phone type, mono; OUTPUT jack : Stereo 1/4-inch phone type; ; *When setting the Output Setting to the "MIX", The mixed sound of trigger 1 and 2 is output in mono.; *When setting the Output Setting to the "INDIVIDUAL", Each trigger is output separately to left and right (TRIG1: L-Side, TRIG2: R-Side).; PHONES jack: Stereo 1/4-inch phone type; USB port: USB type B; DC IN jack
Indica se o equipamento permite ligação USB e/ou qual o seu tipo.
USB
MIDI
Type of power supply needed for the equipment to operate.
Power Supply
Alkaline battery (9 V, 6LR61); AC adaptor (DC 9 V, sold separately); Supplied from the computer via USB port
Refere-se consumo de energia, em amperes.
Current Draw
100 mA (DC IN); 250 mA (USB); ; ; Expected battery life under continuous use : Approx. 3 hours; *It depends on the batteries' specification, capacity, and conditions of use.
Information concerning the accessories included at the time of purchase: AC adaptor, (guitar) picks, tuner, user manual or others.
Accessories
Owner's manual; Leaflet "USING THE UNIT SAFELY"; Alkaline battery (9 V, 6LR61); USB type B Cable
Size and Weight
Item width. Usually measured in mm or cm. And even in inches.
Width
150 mm; 5-15/16 inches
Indica a profundidade do artigo, geralmente medido em mm ou cm
Depth
95 mm; 3-3/4 inches
Altura do artigo. Por norma medida em mm ou cm. Em determinados produtos, esta medida refere-se ao comprimento.
Height
60 mm; 2-3/8 inches
Refere-se ao peso do equipamento, com as pilhas incluídas.
Weight (including batteries)
550 g; 1 lb 4 oz
