Active Subwoofers

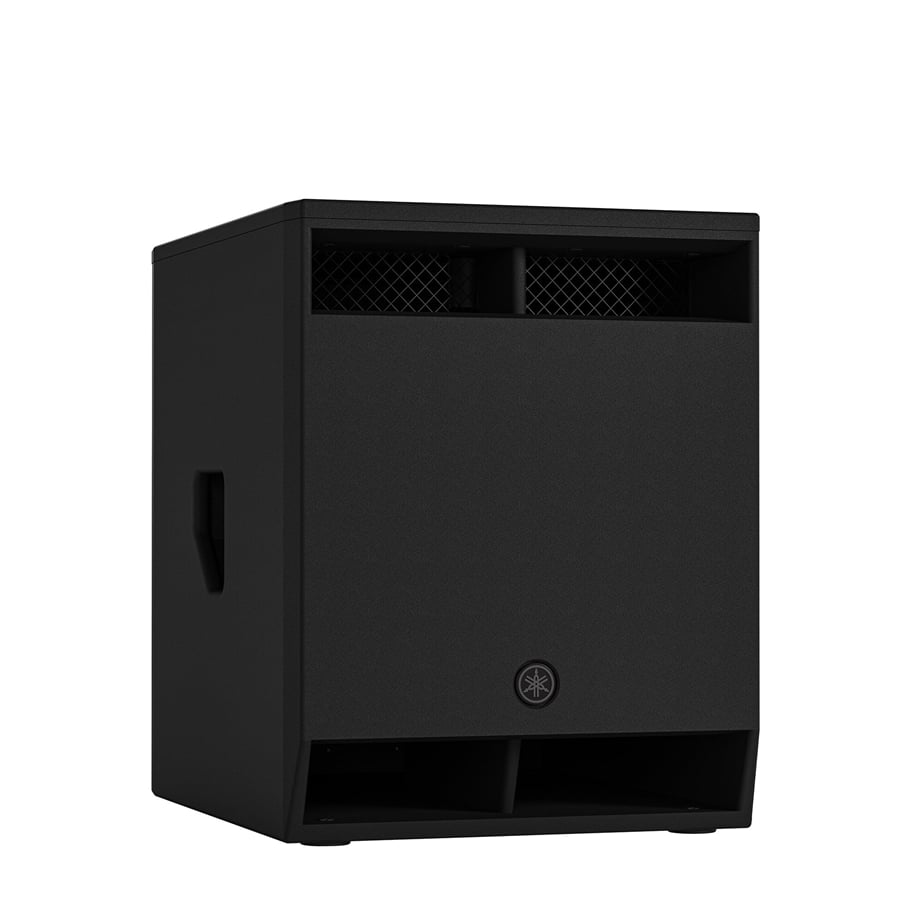

Yamaha DXS15 mk3 Black Active Subwoofer

Active Subwoofer

ID: ZM109420

Yamaha
Yamaha DXS15 mk3 Black Active Subwoofer
£ 971
(1135 €)

In stock

We deliver to: United Kingdom

Accumulate discounts for your card

Best price on the market

Color:
lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Complete your purchase!

Yamaha DXS15 mk3 Black Active Subwoofer
Yamaha DXS15 mk3 Black Active Subwoofer
£ 971
Yamaha QN111028 Power Cable
Yamaha QN111028 Power Cable
£ 9.75
Yamaha DXS15 mk3 Black Active Subwoofer
Yamaha DXS15 mk3 Black Active Subwoofer
£ 971
Yellow Cable PRO M06X 6mt Neutrik XlrF/XlrM Microphone Cable
Yellow Cable PRO M06X 6mt Neutrik XlrF/XlrM Microphone Cable
£ 20.18
Yamaha DXS15 mk3 Black Active Subwoofer
Yamaha DXS15 mk3 Black Active Subwoofer
£ 971
Yamaha AG03 MK2 Black Interface audio mixer
Yamaha AG03 MK2 Black Interface audio mixer
£ 116

Yamaha DXS15 Powered Subwoofer

The DXS15 mk3 is the mid-size version of Yamaha’s latest generation of DXS series powered subwoofers. The new model delivers deep, clear, and remarkably powerful, ultra-low bass thanks to our proprietary high-durability transducers, redesigned high-efficiency power amplifiers, and an ideal bandpass structure that eliminates unwanted cabinet noise. When paired with our perfectly matched DXR mk3 series loudspeakers in particular, the DXS15 mk3 enables users to build a seamlessly integrated sound system with unparalleled impact.

Features
check_circle_outline
15" Cone, 3" Voice coil proprietary high-durability speaker unit
check_circle_outline
Newly developed 2500 W Class-D amplifier
check_circle_outline
High-output woofer with an ideal bandpass cabinet design for superior bass response, delivering a maximum 133 dB SPL
check_circle_outline
Built-in D-XSUB processing allows you to extend the frequency response even lower, up to 35 Hz
check_circle_outline
Extremely flexible X-OVER settings with DSP
check_circle_outline
Cardioid mode for bass management onstage
check_circle_outline
Plywood cabinet is durable and acoustically optimized for maximum sound quality
check_circle_outline
M20 and Ø35 mm dual pole sockets
check_circle_outline
Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS153)
Specifications
Yamaha DXS15 mk3 Black Active Subwoofer
Miscellaneous
Tipo de altifalantes utilizados no sistema, polegadas, diretividade, e outros fatores que definem a qualidade e timbre dos mesmos.
Speaker Type
Powered Subwoofer, Band-pass
Indica o alcance de frequências em que o produto trabalha, geralmente medido em hertz (Hz), kilohertz (kHz) ou Gigahertz (GHz).
Frequency Range
35 Hz - 140 Hz (-10dB)
Nível máximo de saída do sinal (medido em dB).
Maximum Output Level
133 dB SPL (Measured peak, IEC noise@1m)
LF Component
Diameter: 15" cone, Voice Coil: 3"
Um amplificador de áudio de Classe D é basicamente um amplificador de comutação não linear. Os amplificadores de classe D podem teoricamente atingir 100% de eficiência, uma vez que não há período durante um ciclo em que as formas de onda de tensão e corre
Amplifier Class
Class-D
Representa o valor de corrente que necessita para funcionar, geralmente expresso em Watts.
Power Rating
PEAK 2500 W *1 | RMS 1250 W *2
Indica qual o tipo de sistema de arrefecimento que o equipamento possui. Estes sistemas são fundamentais para manter uma operação segura e fiável do equipamento.
Cooling
Fan Cooling, 5 Speeds
Indica o consumo elétrico do teclado, pedal ou outro dispositivo.
Power Consumption
130 W (1/8power), 40 W (Idle)
Indica/descreve a alimentação necessária para um pedal ou outro dispositivo, amplificador, etc.
Power Requirements
100 V - 240 V 50/60 Hz
A/D D/A Converters
32 bit / 96 kHz Sampling
Indica o tipo de Processamento (Por ex.: Equalização, Reverb, etc.) incluído no artigo. DSPs (do inglês Digital Signal Processor) são microprocessadores especializados em processamento digital de sinal usados para processar sinais de áudio, vídeo, etc.
Processors
HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; D-XSUB: NORMAL, XTENDED LF
Material utilizado para construção da caixa [cabinet] (estrutura do amp).
Cabinet Material
Plywood
Finish applied to the product / instrument.
Finish
Durable Polyurea Painting, Black
Indica se o produto tem pega(s) e/ou qual é o tipo ou número de pegas.
Handle
Side x2
Indica se o artigo tem encaixe (copo) para aplicação em suporte e as medidas do mesmo.
Pole Socket
Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)
Outras informações sobre o produto.
Others
D-Remote (iOS/Android app)
Uma descrição de possíveis opções adicionais.
Options
Cover: SPCVR-DXS153, Caster: SPW-1
I/O Connectors
Analog Input
INPUT1 & 2: Combo x1, Impedance 20 kΩ (balanced) 10 kΩ (unbalanced), Maximum Input Level +24 dBu
Analog Output
OUTPUT1 & 2: XLR3-32 THRU or DSP OUT
Bluetooth
Ver.5.0, A2DP (SBC, AAC), Class 1 *3
Dimensions and Weight
Dimensions (W x H x D)
480 mm (18.9") x 611 mm (24.1") X 614 mm (24.2")
Peso efetivo (real) do artigo.
Net Weight
37.0 kg (81.6 lbs)
Notes
*1
Total peak power of individual outputs. Measured by recording the highest peak-to-center voltage produced at minimum load impedance, with protection released.
*2
Measured by recording the highest RMS voltage produced at minimum load impedance, with protection released.
*3
Compatible with audio streaming via Bluetooth®
