Turntable Stylus

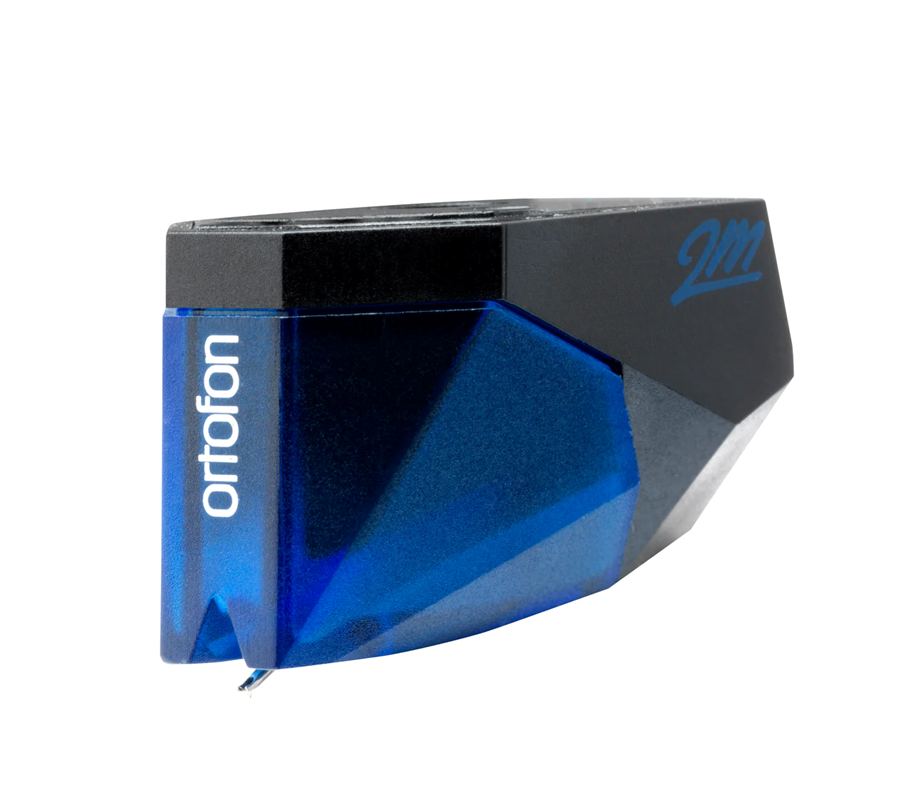

Ortofon 2M Blue Stylus

Turntable Stylus

ID: ZM105432

Ortofon
Ortofon 2M Blue Stylus
174 €

Out of stock

Accumulate discounts for your card

Color:
lojaIcon
VIEW STORE STOCK
1
Pagamentos
View all options and shipment methods

Ortofon 2M NEXT LEVEL AUTHENTICITY

Accuracy level travelling back to the moment the music was recorded.

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Specifications
Ortofon 2M Blue Stylus
Miscellaneous
Channel Balance at 1 kHz
1.5 dB
Output Voltage at 1 kHz
5cm/sec - 5 mV
Channel Separation at 1 kHz
25 dB
Channel Separation at 15 kHz
15 dB
O alcance e a resposta de frequências do equipamento (medido em Hz).
Frequency Response
20 Hz - 20 kHz 20-20.000 Hz + 2 / - 1 dB
Tracking Ability at 315 Hz
80 µm (at recommended tracking force)
Compliance / Dynamic / Lateral
20 µm/mN
Stylus Type
Nude Elliptical (single solid piece)
Stylus Tip Radius
r/R 8/18 µm
Tracking Force Range
1.6-2.0 g (16-20 mN)
Recommended Tracking Force
1.8 g (18 mN)
Tracking Angle
20°
Internal Impedance, DC Resistance
1.3 kOhm
Recommended Load Capacitance
150-300 pF
Premounted Cartridge Weight
16.7 g
Recommended Load Resistance
47 kOhm
Internal Inductance
700 mH
Cartridge Weight
7.2 g
Cartridge Colour
Black / Blue
Stylus Colour
Blue
